IEC 60068-2-31 IEC60068-2-32 Touch Panel Tumble Tester Tumble Drop Impact Tester

Product Categories
Infinity Machine International Inc.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IEC 60068-2-31 IEC60068-2-32 Touch Panel Tumble Tester Tumble Drop Impact Tester

  • 1
  • 2

Brand Name : Infinity Machine

Model Number : BD1050

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Tumbling drop tester: Shipped in 15 days after payment

Packaging Details : Tumble drop tester: Standard export wooden case with operation manual and video inside.

Test amount : 2 set

Drop width : 350mm

Drop height : 0 - 1000mm

Test speed : 2~20 cycles /min

Test cycle : 1~999,999times (can set)

Dimension : 1250x1500x1680mm

Weight : 250kg

Power supply : AC220V 50Hz 5A or specified by user

Contact Now

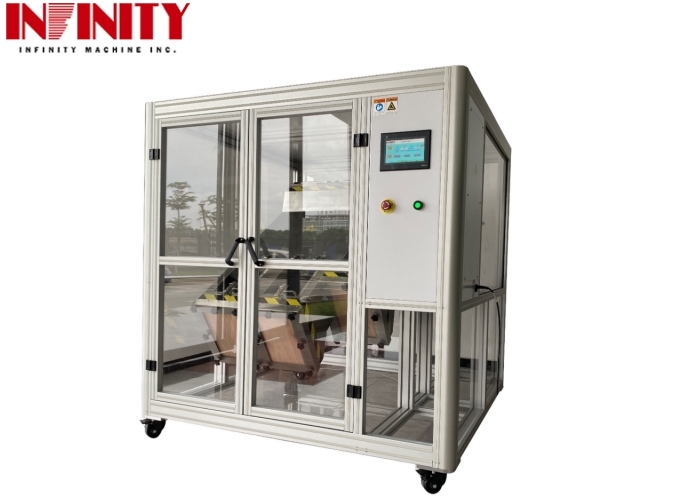

Touch Panel Tumble Drop Test Machine for Electronic Products Tumble Drop Tester IEC 60068-2-31 IEC60068-2-32



Model: BD1050



Application:



Tumble drop impact test machine is suitable for continuous rotation drop test of small consumer electronic products such as mobile phones, cameras, tablets, Bluetooth speakers, chargers, earphones, Pad, electronic dictionaries, CD, MP3, MP4, MP5, remote controller, adapters and so on.



There have single barrel drop test machine, double barrels tumble drop tester, three barrels tumbling drop tests, four barrels tumble drop test mequipment. In addition, we can customize the tumble drop equipment according to your requirements.





Standards:

Tumble drop test equipment complies with IEC60068-2-32, GB/T2324.8 and other test standards.



Specification:



Products Tumble Drop Test Machine
Model BD1050
Test amount 2set or 4set
Drop width 350mm
Drop height 500mm or 1000mm
Test speed 5~20 times /min
Test cycle 1~999,999times (can set)
Dimension (WxDxH) 1300x1200x1500mm
Weight 165kg
Power Supply AC220V 50Hz 5A or specified by user



IEC 60068-2-31 IEC60068-2-32 Touch Panel Tumble Tester Tumble Drop Impact Tester

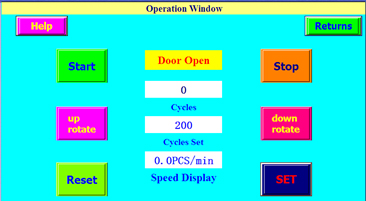

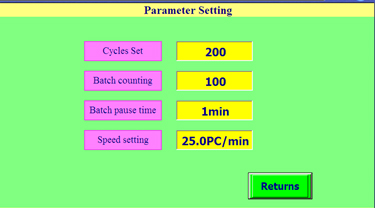

Testing Interface:



IEC 60068-2-31 IEC60068-2-32 Touch Panel Tumble Tester Tumble Drop Impact Tester



IEC 60068-2-31 IEC60068-2-32 Touch Panel Tumble Tester Tumble Drop Impact Tester



Rolling Barrel:



There are 2 barrels in the tester, 1 barrel with 0.5m height, and another barrel with 1.0m height.



IEC 60068-2-31 IEC60068-2-32 Touch Panel Tumble Tester Tumble Drop Impact Tester





Working Video:
