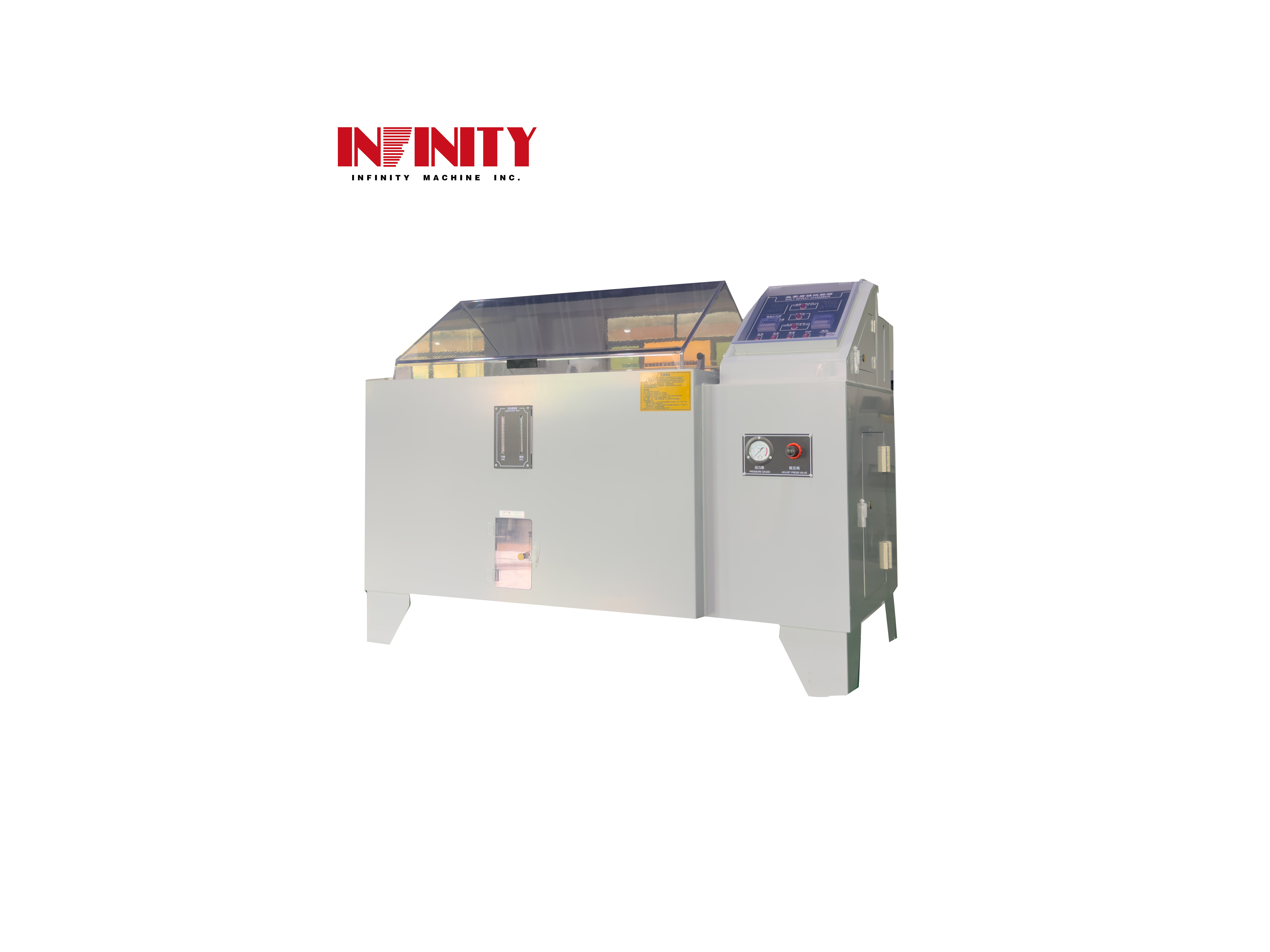

GB/T2423.17 Salt Spray Test Chamber 80cm2/h Temperature Uniformity Of ≦1.0C

Name: GBT242317 Salt Spray Test Chamber 80cm2h Temperature Uniformity Of 10C
Brand: Infinity Machine
Price: 1 USD

Buy cheap GB/T2423.17 Salt Spray Test Chamber 80cm2/h Temperature Uniformity Of ≦1.0C product

Brand Name : Infinity Machine

Model Number : IE44160L

Place of Origin : Made In China

Certification : CE,ISO

Model number : IE44160L

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Temperature fluctuation : ±0.5℃

Power Supply : AC220;V50Hz;4.5KW

Temperature uniformity : ≦1.0℃

Box structure : ●The Inner And Outer Boxes Of The Laboratory: The Inner And Outer Boxes Of The Laboratory Are Made Of Grade A PVC Polyvinyl Board, The Thickness Of The Whole Machine Is 8mm, And The Acid And Alkali Resistance And Temperature Resistance To 78℃. ●Laboratory

Water refill method : Automatic/manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier

The amount of salt spray settling : 1～3ml/h.80cm2

Spray pressure : 1.00±0.01kgf/cm²

Capacity : 250L

Humidity : 85%~98%RH

Temperature range : ± 0.5℃

Salt spray subside : 1.0~2.0ml/80cm2/h

Test room size : 900x600x450mm

Machine size : 1460x910x1280mm

Lab temperature : NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Saturator temperature : NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Power supply : AC220V 15A or specified by user

Water way : atered by itself while lack of water

Spray work time : Precise spray can work 2000 hours without crystalled jam.

Body material : Japanese PVC environmental protection & high anti-aging capability

Spray Material : transparent PVC

SSR : precisely digital thermal controller with spray protection system.

Standards : GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371

Application : This tester is used for the surface erosion resistance test of kinds of material processed by paint, plating, anodized.

Contact Now

Salt Spray Test Chamber

Model Number: IE44160L

Salt Spray Test Chamber Model Number IE44160L Temperature Uniformity Of ≦1.0C

Product Description:

This Salt Spray Test Chamber is to simulate the dispersion system composed of tiny salt-containing droplets in the atmosphere, which is widely used in electronic, electrical and automobile, motorcycle, hardware, plastic, FPC soft board, and other industries after electroplating, painting, coating, anodic treatment of salt spray corrosion test to evaluate its surface corrosion resistance

Features:

The test supplement is hidden, no need to open the lid filling. At the same time, there is a water level observation window on the side, which is convenient for cleaning.
A special glass nozzle is used to spray the water pipe with a brine filter, which can be used for 4000 hours without crystalline salt blockage.
The control components are selected from well-known brands, and the structure of upper and lower water and electricity separation is adopted to avoid safety hazards, prevent circuit corrosion and aging, maximize the service life of electrical components, and make maintenance easier.
According to the customer installation site can be manually and automatically add water, easy to use.
Continuous spray and intermittent spray can be quickly and freely switched, easy to operate

Technical Parameters:

Model number	IE44160L
Laboratory temperature range	RT+5℃~60℃
Pressure barrel temperature range	RT+5℃~70℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦1.0℃
The amount of salt spray settling	1～3ml/h.80cm2
Spray pressure	1.00±0.01kgf/cm²
Spray method	Continuous spray + intermittent spray
Effective inner volume of the test	800L
Interior dimension: WxHxD(mm)	16001000500
Carton size: WxHxD(mm)	243012501400
Box structure	●The inner and outer boxes of the laboratory: the inner and outer boxes of the laboratory are made of grade A PVC polyvinyl board, the thickness of the whole machine is 8mm, and the acid and alkali resistance and temperature resistance to 78℃. ●Laboratory seal cover: The seal cover of the laboratory is made of grade A PVC plate, the thickness is 8mm, the surrounding reinforcement is 13mm, and the acid and alkali resistance and temperature resistance are 78℃
Open cover system	Manual opening	One-click automatic cover opening
Water refill method	Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier
Sample Stand	The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and on all sides the direction of falling fog and receiving fog is completely the same.
Safety protection device	●When the salt water is low, the heater power is automatically cut off ●When the temperature exceeds, the heater power supply is automatically cut off ●When the laboratory water level is low, the heater power supply is automatically cut off
Power Supply	AC220;V50Hz;4.5KW

Support and Services:

Salt Spray Test Chamber Technical Support and Service

We provide technical support and service for Salt Spray Test Chamber. Our team of expert technicians is available to help with installation, maintenance, and troubleshooting of test chambers, as well as general advice on how to optimize their performance.

We offer technical support via phone and email, as well as on-site visits for installation and maintenance. Our technicians have a wealth of experience in dealing with environmental test chambers and can provide tailored advice to suit your specific needs.

We also offer a comprehensive range of maintenance and repair services, from simple repairs and replacements to complex system overhauls. We can help with software updates, calibration, and other necessary adjustments, ensuring that your test chamber remains in optimal working order.

If you have any questions about our technical support and service for Salt Spray Test Chambers, please don't hesitate to contact us. We look forward to hearing from you.

Packing and Shipping:

Salt Spray Test Chamber Packaging and Shipping:
The Salt Spray Test Chamber should be packaged in a sturdy, protective container to ensure that no damage occurs during transit.

FAQ:

Q: What is the brand name of the Salt Spray Test Chamber?: A: The brand name is Infinity Machine.
Q: What is the model number of the Salt Spray Test Chamber?: A: The model number is IE44160L.
Q: Where is the Salt Spray Test Chamber made?: A: The Salt Spray Test Chamber is made in China.
