DVD Hinge Torsion Testing Machine / Laptop Torque Testing Equipment

Name: DVD Hinge Torsion Testing Machine Laptop Torque Testing Equipment
Brand: Infinity Machine
Price: 1 USD

Buy cheap DVD Hinge Torsion Testing Machine / Laptop Torque Testing Equipment product

Brand Name : Infinity Machine

Model Number : RS-6300D

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Automatic Type Torsion Testing Machine for Computer Test English Software : 150kgf.cm，200kgf.cm

Test angle : 0~180°

Effective width : 500mm or 700mm ( optional )

Test speed : 60~7200°/min

Motor : AC servo motor

Main unit dimension : 1150x745x1500mm

Main unit weigh : 175kg

Power supply : AC220V 5A or specified by user

Contact Now

DVD Hinge Torsion Testing Machine / Laptop Torque Testing Equipment

Model: RS-6300D

Purpose:

Apply for the torque test of Note-book hinge, mobile hinge /full unit, electronic dictionary hinge or whole unit, rotating switch and so on.

Adopt windows displayer in English program, easy operating, automatic memory ( torque & angle curve, torque life time curve, test report ), also can memorize all the test conditions.

DVD Hinge Torsion Testing Machine / Laptop Torque Testing Equipment

This machine is with high precise load cell and driven by servo motor, can get the accurate torque report. It is the necessary tester for HINGE manufacturer in R&D and quality control.

Application:

Mobile hinge torque test

Mobile unit hinge torque test

NB hinge torque test

DVD hinge torque test

Dictionary torque test

Knob Switch torque test

Specification:

Model	RS-6300D
Capacity (optional)	10kgf.cm, 50kgf.cm,100kgf.cm,200kgf.cm
Unit (switchable)	kgf.cm,N.m, Lb.in
Load accuracy	±0.5%
Min. load display	0.01 kgf.cm
Test angle	No limitation
Min. angle display	0.001°
Effective width	250mm, 400mm ( optional )
Test speed	60~15000°/min
Speed accuracy	±0.5%
Motor	AC servo motor
Main unit dimension (WxDxH)	400x300x1150mm
Main unit weight	65kg
Power supply	AC220V 5A or specified by user

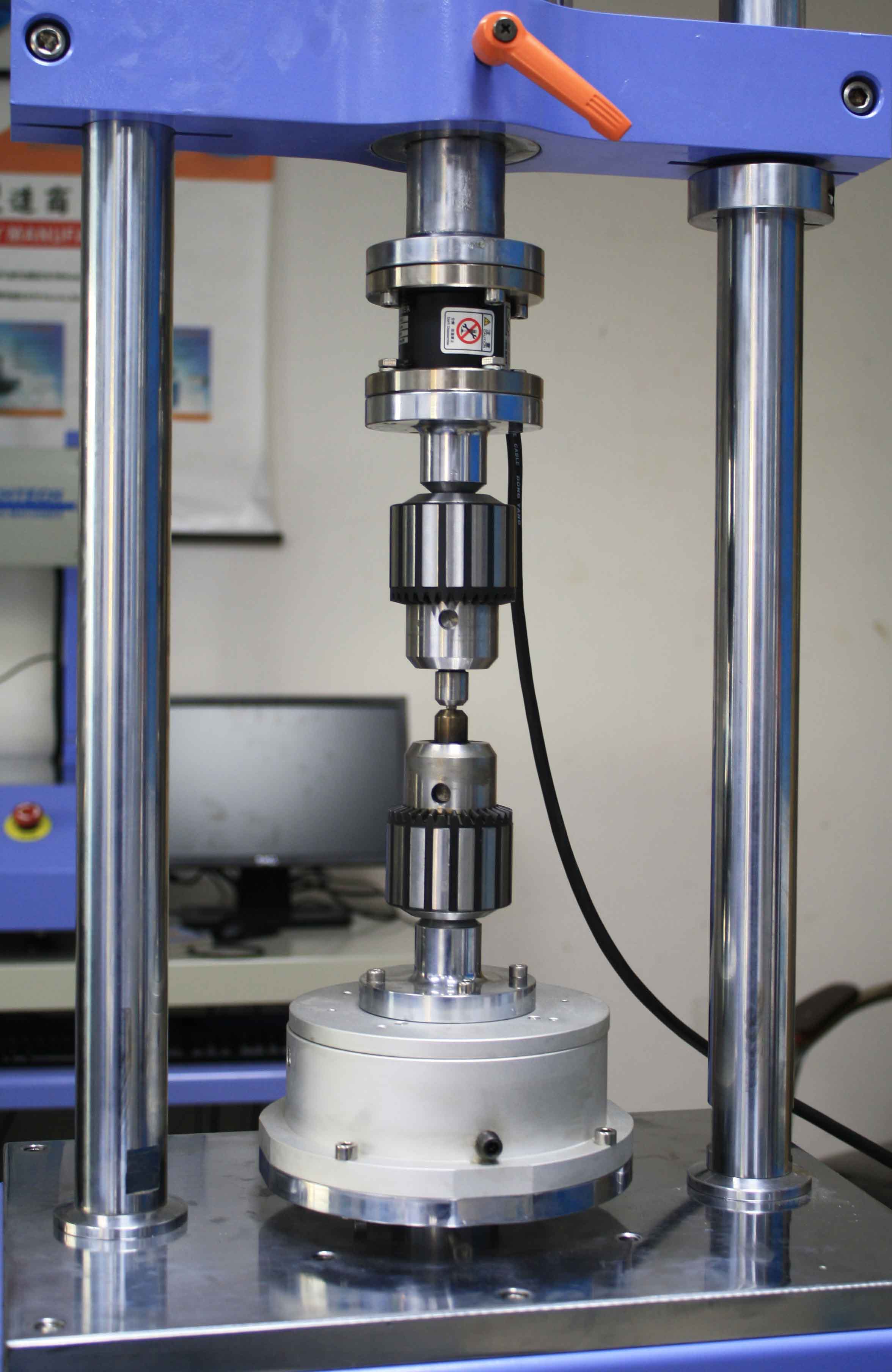

Fixture Picture:

DVD Hinge Torsion Testing Machine / Laptop Torque Testing Equipment

Product Tags:

torque testing machine

torsion spring tester

DVD Hinge Torsion Testing Machine / Laptop Torque Testing Equipment Images
