Multi Conductor Bending Test Machine , Cable Flex Tester Machines 220V 50Hz

  • 1
  • 2
  • 3

Brand Name : Infinity Machine

Model Number : C5092

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Cable flex testing machine: Shipped in 15 days after payment

Packaging Details : Cable flex test machine: Standard export wooden case with operation manual and video inside.

Test amount : 2pcs

Test speed : 10~60rpm±2cpm (Frequent user of 13rpm)

Angle range : 90°

Min display angle : ±1°

Dia.of Rotation plate : 275mm

Dimension : 1280x724x1320mm

Weight : 350kg

Power supply : AC220V 50Hz 5A or specified by user

Contact Now



Multi Conductor Bending Test Machine, Cable Flex Tester Machines 220V 50Hz



Model: C5092



Purpose:



Cable flexible tester is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc. Cables flexible testing method is short –circuit connecting one end cable and fix this end on the rotation plate, and put the weight on the cable then to do the left and right rotation, to check the cable if conducting after some rotation testing and evaluate the quality of the cable.



Test standards:

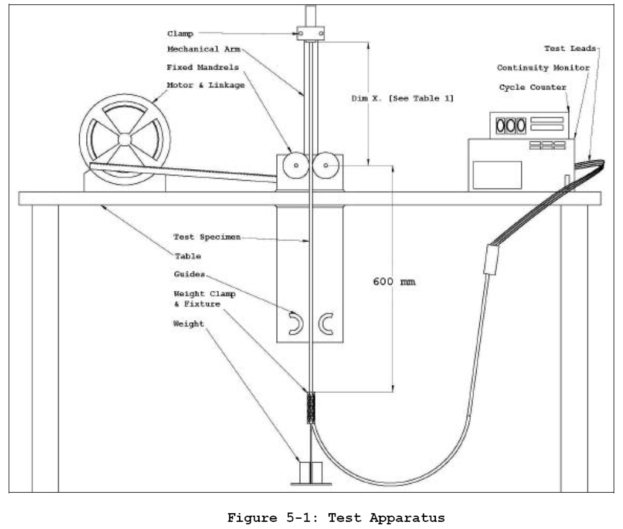

Multi Conductor Bending Test Machine , Cable Flex Tester Machines 220V 50Hz

                                            Cable Bending Destruction Test



Specification:



 Model  C5092
 Test amount  2 PCS
 Test speed  10~60rpm±2cpm (Frequent user of 13rpm)
 Angle range  0~90° / 180° (One cycle is from left to right and back to the left.)
 Min display angle  ±1°
 Testing cycles  1～999,999times
 Guide wheel diameter  Ø26, 38, 50, 62, 74, 86, 98, 110, 122 (changeable) 4 sets
 Dia.of Rotation plate  275mm
 Weights  100g, 200g, 500g, 1000g 2 sets
 Dimension (WxDxH)  1280x724x1320mm
 Weight  350kg
 Power supply  AC220V 50Hz 5A or specified by user



Picture:

Multi Conductor Bending Test Machine , Cable Flex Tester Machines 220V 50Hz

Multi Conductor Bending Test Machine , Cable Flex Tester Machines 220V 50Hz



Service:



For more information, please contact us.



Contacts: Anna Lu



Email: anna.lu@infinity-machine.com



Tel/wechat/whatsapp: +86 18103087812
