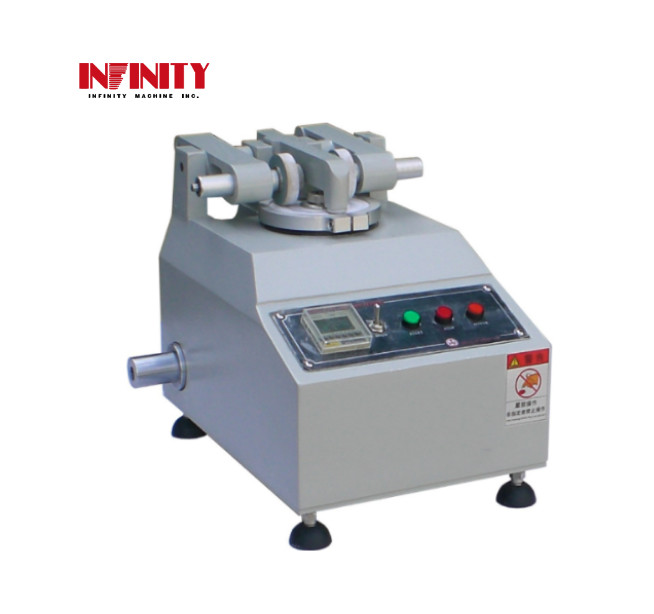

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A

Name: Cloth Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A
Brand: Infinity Machine
Price: 1 USD

Buy cheap Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A product

Brand Name : Infinity Machine

Model Number : RS-8305

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Specimen : Outside dia∮108mm, inside dia∮8mm

Grinding wheel : CS-10

Rotating speed : 60 or 70rpm

Load : 250, 500,1000g

Dimension : 320x380x470mm

Weight : 23kg

Power supply : AC220V 3A or specified by user

Contact Now

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A

Model: RS-8305

Purpose:

The tester applied for cloth, paper, pvc, paint, plywood, leather, tile, laminate floor, rubber etc. The testing method is to make the specimen abraded by a pair of grinding wheels with specified load. The weight of abrasion loss is the weight difference of the specimens between test before and after.

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A

Specification:

Model	RS-8305
Standard.	DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM- D4157, D3884, ISO 5770-1
Specimen	Outside dia∮108mm, inside dia∮8mm
Grinding wheel	∮2″x1/2″(w)
Space between grinding wheels	63.5mm
Grinding wheel and plate’s space	37~38mm
Rotating speed	60 or 70rpm
Load	250, 500,1000g
Counter	LCD,0~999,999 (can set)
Grinding wheel	CS-10
Distance between specimen and dust collecting hole	3mm
Dimension (WxDxH)	320x380x470mm
Weight	23 Kg
Power supply	AC220V 3A or specified by user

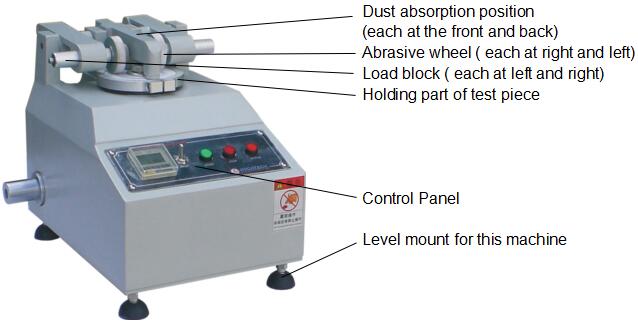

Structure:

Product Tags:

din abrasion tester

rotary abrasion tester

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A Images
