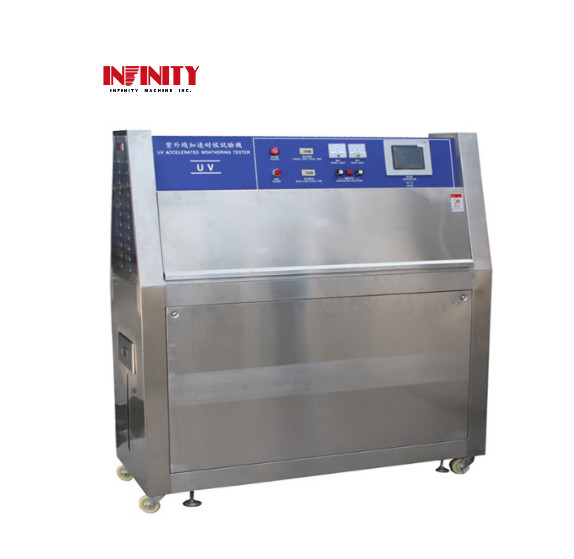

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3

Name: UV Lamps Plastic Testing Machines UV Accelerated Weathering Tester ISO 48923
Brand: Infinity Machine
Price: 1 USD

Brand Name : Infinity Machine

Model Number : Z-UV

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Temp-range : RT+10℃~70℃

Humid-range : 90% RH ~98% RH

Lamps type : UV-A, 40W / UV-B, 40W

UV light wavelength : 315～400nm/280～315nm

Light Size : W450xH260mm

Power supply : AC220V 50Hz 3KW or specified by user

Main unit dimension : 580x280x1450mm

Main unit weight : 130 Kg

Contact Now

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3

Model: Z-UV

Purpose:

Plastic Testing Machine adopts fluorescent lamp simulating the UV spectrum of sun shine, combined with temperature control, humidity system. It can simulates various of conditions such as temperature, shining strength and humidity to evaluate the breakage, peeling, pulverization, oxidization of the specimen.

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3

Standard:

This UV accelerating weather tester is suitable for liable tests in lots of industries. It is according to below standard to make, GB/T14522-93,GB/T16585-1996 and GB/T16422.3-1997; And complied with international testing standards as:ASTM D4329,D499,D4587,D5208,G154,G53；ISO 4892-3,ISO 11507；EN 534；EN 1062-4, BS 2782；JIS D0205；SAE J2020.

Features:

This machine provides good UV simulation, low maintance cost, easy operation. It runs itself by programme automatically with stable light.

Specification:

Model	Z-UV
Temperature range	RT+10℃~70℃
Humidity range	90% RH ~98% RH
Distance between lamps	70±2mm
Distance between specimen and lamp	50±2mm
Lamps type	UV-A, 40W / UV-B, 40W
UV light wavelength	315～400nm/280～315nm
Standard test shelf	75x300mm(3x12”)/23 or 100x300mm(4x12”)/15
Lamps amount	8 sets
Nozzle:	12 pieces
Light Size:	W450xH260mm
Main unit dimension (WxDxH)	580x280x1450mm
Main unit weight	130 Kg
Power supply	AC220V 50Hz 3KW or specified by user

Internal structure:
